| Specification | Value |
|---|---|
| Engine Brand | SME (Mitsubishi Liscence) |
| Power coverage | 500-2500kva |
| Engine type | Mitsubishi PS6 , Diesel |
| Speed | 1500rpm |
| Frequency | 50Hz |
| Cooling Systerm | Water-cooled |
| Insulation Protection | IP23 |
| Insulation Grade | Class F / Class H |
| Alternator | Satoshi / Stamford / Leroy Somer / Mecc Alte / Other... |
| Controller | Deepsea / SmartGen / Woodward / ComAp / Datakom / Other... |
| ATS System | Optional |

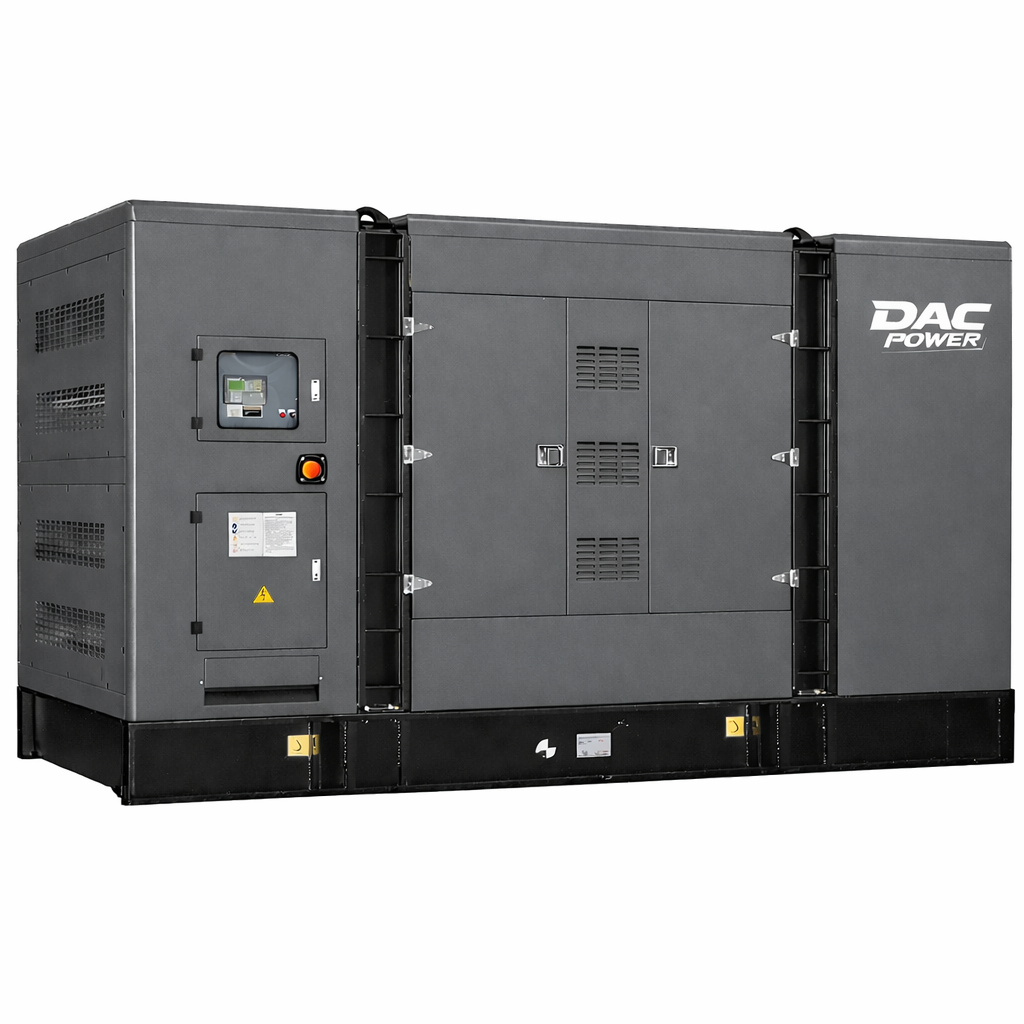

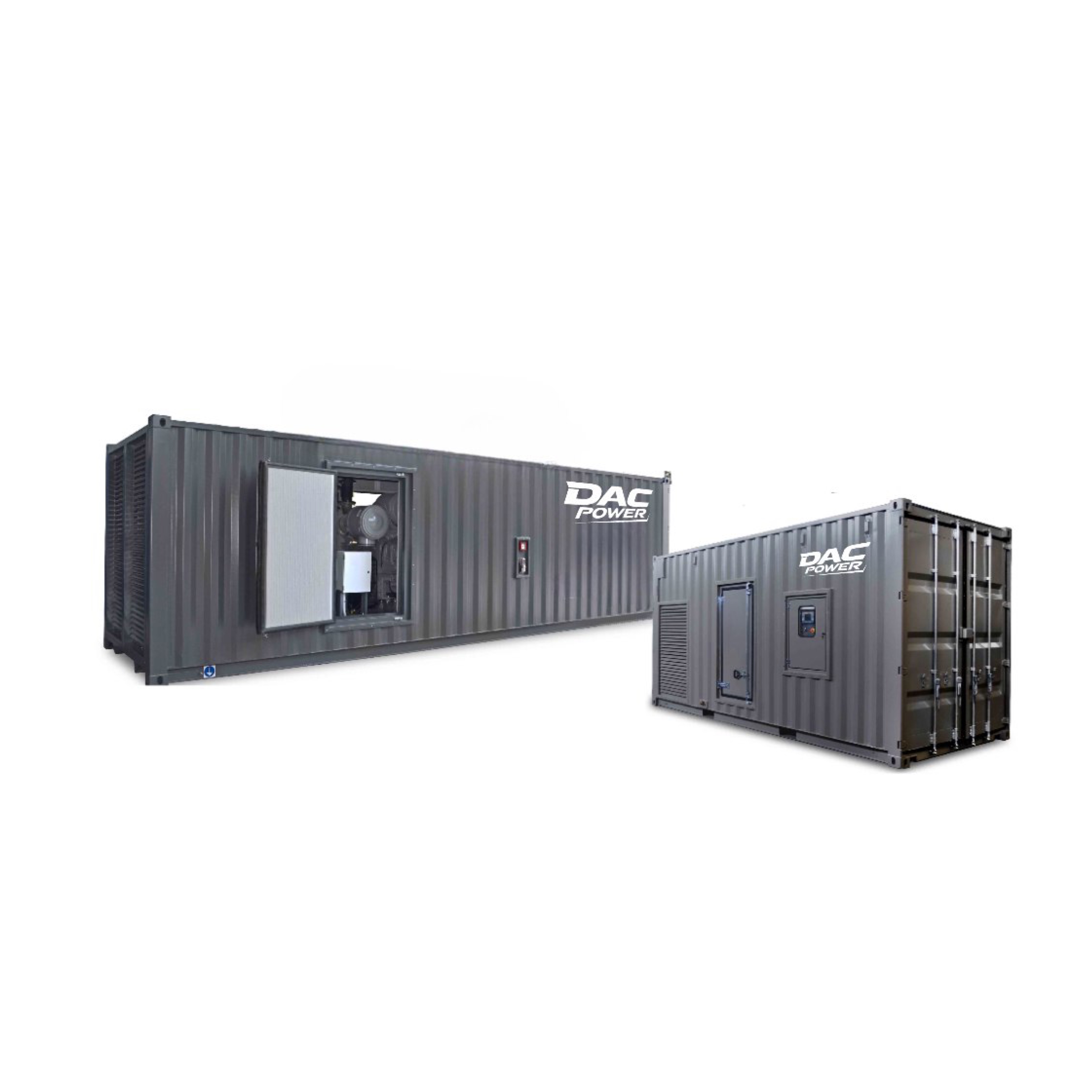

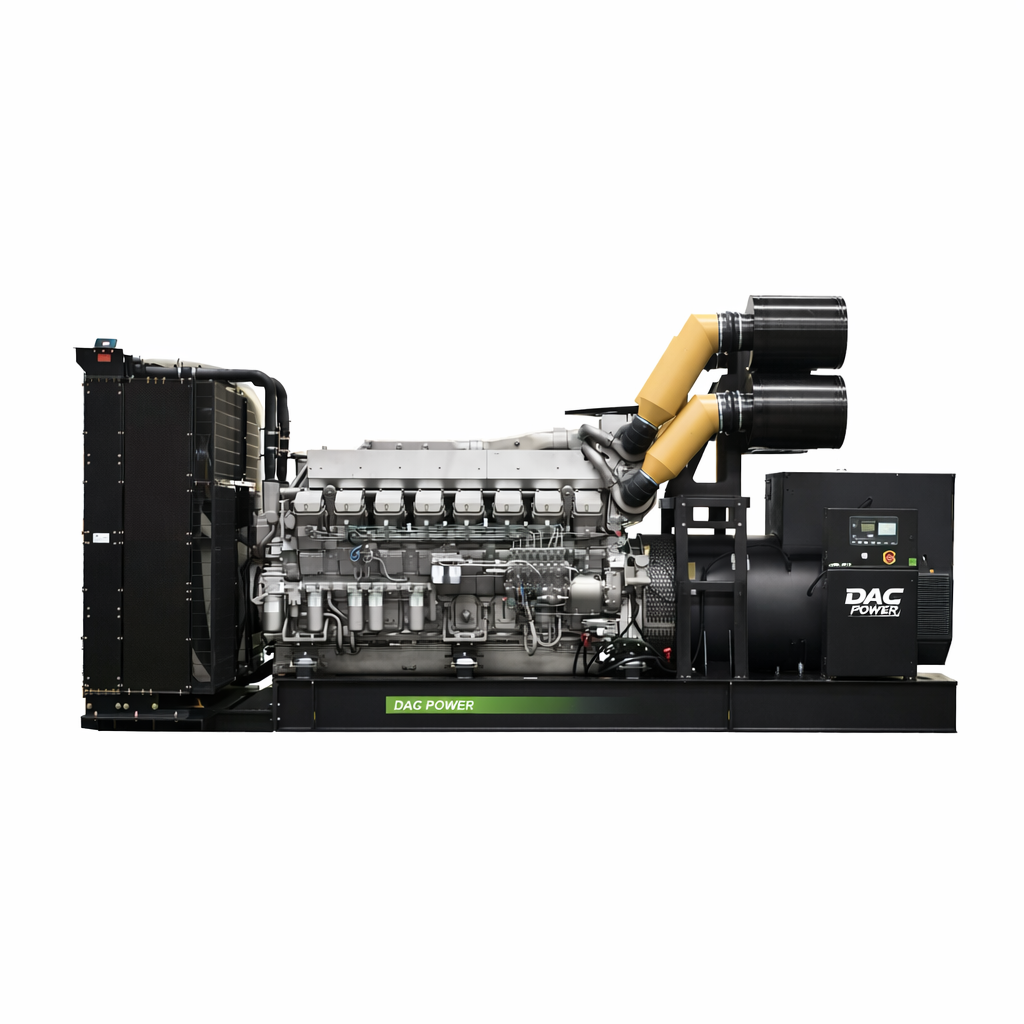

| Genset Version | Open configuration / Canopy silent / Containerized |
| Genset Series | STG-M |
| SERIES 50HZ 1500R.P.M | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset Version | Genset Performance | Engine Performance | Dimension(L*W*H) | Data Sheets | ||||||||
| Open Type Genset Model | Silent Type Genset Model | Standby Power | Prime Power | Engine Model | Net Power (kw) | Cyl-Bore*Stroke (mm) | Displacement (mm) | Open type (mm) | Silent Type (mm) | - | ||
| kVA | kW | kVA | kW | |||||||||
| STG-M500 | STG-M500S | 500 | 400 | 450 | 360 | S6R2-PTA-C | 635 | 6L-170*220 | 29.96 | 3600*1500*2270 | 4600*2000*2550 | - |
| STG-M550 | STG-M550S | 550 | 440 | 500 | 400 | S6R2-PTA-C | 635 | 6L-170*220 | 29.96 | 3600*1500*2270 | 4600*2000*2550 | - |
| STG-M630 | STG-M630S | 630 | 504 | 575 | 460 | S6R2-PTA-C | 635 | 6L-170*220 | 29.96 | 3600*1500*2270 | 4600*2000*2550 | - |
| STG-M715 | STG-M715S | 715 | 572 | 650 | 572 | S6R2-PTA-C | 635 | 6L-170*220 | 29.96 | 3600*1500*2270 | 4600*2050*2550 | - |
| STG-M750 | STG-M750S | 750 | 600 | 675 | 540 | S6R2-PTA-C | 635 | 6L-170*220 | 29.96 | 36000*1500*2270 | 4800*2050*2550 | - |
| STG-M825 | STG-M825S | 825 | 660 | 750 | 600 | S6R2-PTAA-C | 710 | 6L-170*220 | 29.96 | 3900*1800*2350 | 5600*2200*2550 | - |
| STG-M1100S | STG-M1100S | 1100 | 880 | 1000 | 800 | S12R-PTA-C | 1190 | 12V-170*180 | 49.03 | 4600*2200*2250 | 5800*2250*2550 | - |
| STG-M1250 | STG-M1250S | 1250 | 1000 | 1125 | 900 | S12R-PTA-C | 1190 | 12V-170*180 | 49.03 | 4600*2200*2500 | 5800*2250*2550 | - |
| STG-M1375 | STG-M1375L | 1375 | 1100 | 1259 | 1000 | S12R-PTA-C | 1190 | 12V-170*180 | 49.03 | 4700*2250*2520 | Container 20FT | - |
| STG-M1500 | STG-M1500L | 1500 | 1200 | 1350 | 1080 | S12R-PTA2-C | 1285 | 12V-170*180 | 49.03 | 4700*2200*2500 | Container 20FT | - |
| STG-M1650 | STG-M1650L | 1650 | 1320 | 1500 | 1200 | S12R-PTAA2-C | 1404 | 12V-170*180 | 49.03 | 5350*2250*2550 | Container 40HQ | - |
| STG-M1875 | STG-M1875L | 1875 | 1500 | 1719 | 1370 | S16R-PTA-C | 1590 | 16V-170*180 | 65.37 | 5300*2250*2550 | Container 40HQ | - |
| STG-M2000 | STG-M2000L | 2000 | 1600 | 1860 | 1488 | S16R-PTA2-C | 1760 | 16V-170*180 | 65.37 | 6000*2250*2550 | Container 40HQ | - |
| STG-M2250 | STG-M2250L | 2250 | 1760 | 2000 | 1600 | S16R-PTAA2-C | 1895 | 16V-170*180 | 65.37 | 6000*2250*2550 | Container 40HQ | - |
| STG-M2500 | STG-M2500L | 2500 | 2000 | 2500 | 1800 | S16R-PTAW-C | 2167 | 16V-170*220 | 79.90 | 6500*2250*2620 | Container 40HQ | - |
