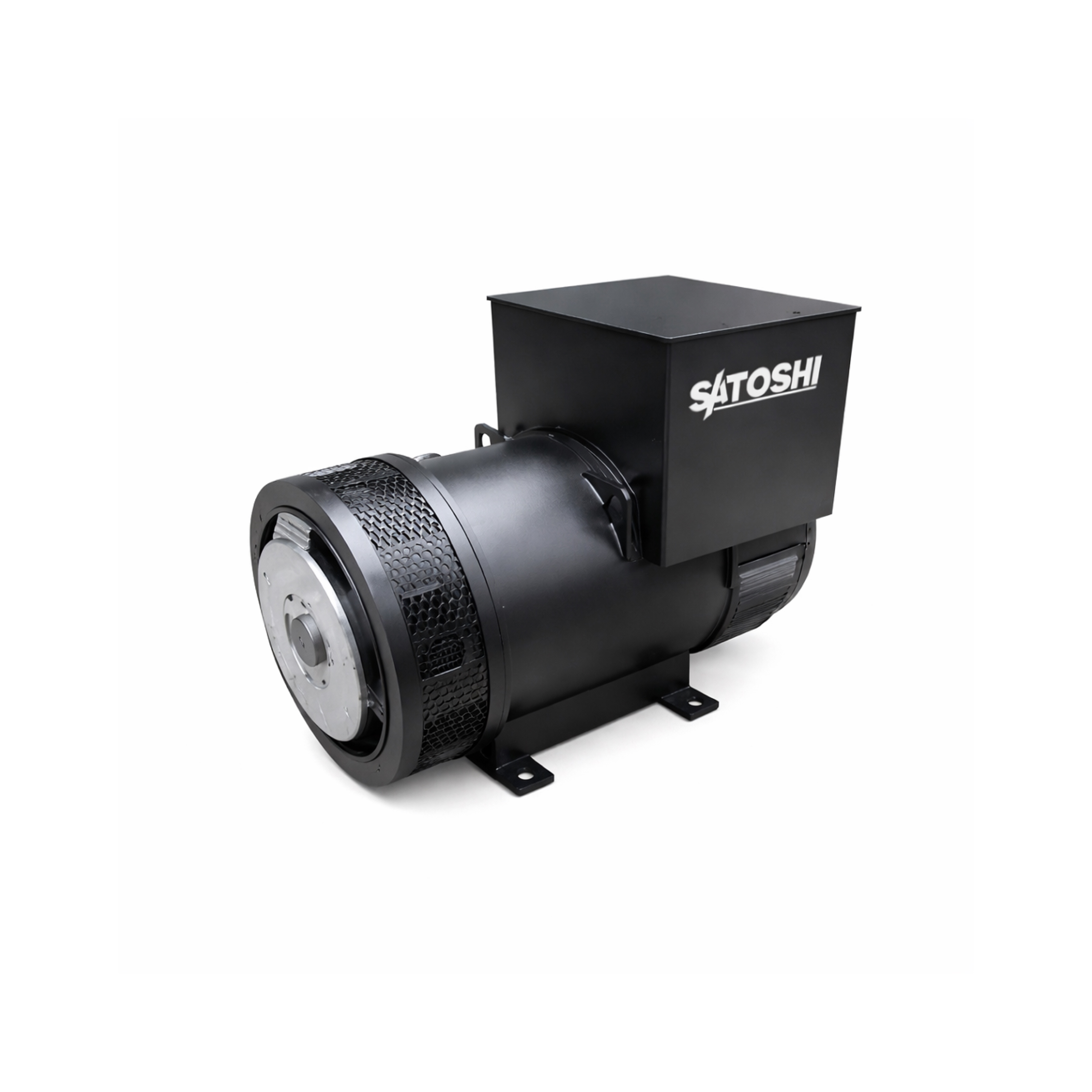

Experience unmatched reliability and performance with our brushless alternator, meticulously engineered using Satoshi technologies. This alternator is the perfect choice for various power generation applications, offering robust and efficient operation to meet your demanding requirements.
| Specification | Value |
|---|---|
| Alternator Data | SATOSHI POWER |
| AC Brushless | STA Series |
| Phase No. | Three |
| Enclose / Protection Grade | IP23 |
| Bearing | 1 |
| Power Factor (Lagging) | 0.8 |
| Freqency (Hertz) | 50 |
| Coupling Type | Direct |
| Exciter Type | Brushless, Self-excitation |
| Voltage Regulator Type | AVR |
| Insulation Grade (Class) | H/H |
| Altitude | ≤1000 |
| 50HZ - AC ALTENATOR | STANDBY 27°C | CONTUNUOUS 40°C | ||
|---|---|---|---|---|
| Brushless STA Series | KVA | KW | KVA | KW |
| STA-164-A | 9 | 7 | 8 | 6.5 |
| STA-164-B | 12 | 10 | 11 | 8.8 |
| STA-164-C | 15 | 12 | 13 | 10.8 |
| STA-164-D | 18 | 14 | 16 | 12.8 |
| STA-184-ES | 22 | 18 | 20 | 16 |
| STA-184-E | 25 | 20 | 22 | 18 |
| STA-184-FS | 28 | 22 | 25 | 20 |
| STA-184-F | 39 | 31 | 28 | 22 |
| STA-184-G | 35 | 28 | 31 | 25 |
| STA-184-H | 42 | 33 | 38 | 30 |
| STA-184-J | 52 | 37.5 | 42 | 34 |
| STA-224-C | 52 | 37.5 | 42 | 34 |
| STA-224-D | 55 | 44 | 50 | 40 |
| STA-224-E | 66 | 53 | 60 | 48 |
| STA-224-F | 80 | 64 | 72 | 58 |
| STA-274-G | 94 | 75 | 85 | 68 |
| STA-274-CS | 75 | 60 | 94 | 75 |
| STA-274-C | 110 | 88 | 100 | 80 |
| STA-274-DS | 125 | 100 | 113 | 90 |
| STA-274-D | 132 | 105 | 120 | 96 |
| STA-274-ES | 138 | 110 | 125 | 100 |
| STA-274-E | 154 | 123 | 140 | 112 |
| STA-274-FS | 165 | 132 | 150 | 120 |
| STA-274-F | 175 | 140 | 160 | 128 |
| STA-274-G | 200 | 160 | 182 | 145.6 |
| STA-274-H | 220 | 176 | 200 | 160 |
| STA-274-J | 252 | 202 | 230 | 184 |
| STA-274-K | 275 | 220 | 250 | 200 |
| STA-444-C | 275 | 220 | 250 | 200 |
| STA-444-DS | 302 | 242 | 275 | 220 |
| STA-444-D | 330 | 264 | 300 | 240 |
| STA-444-ES | 357 | 286 | 325 | 260 |
