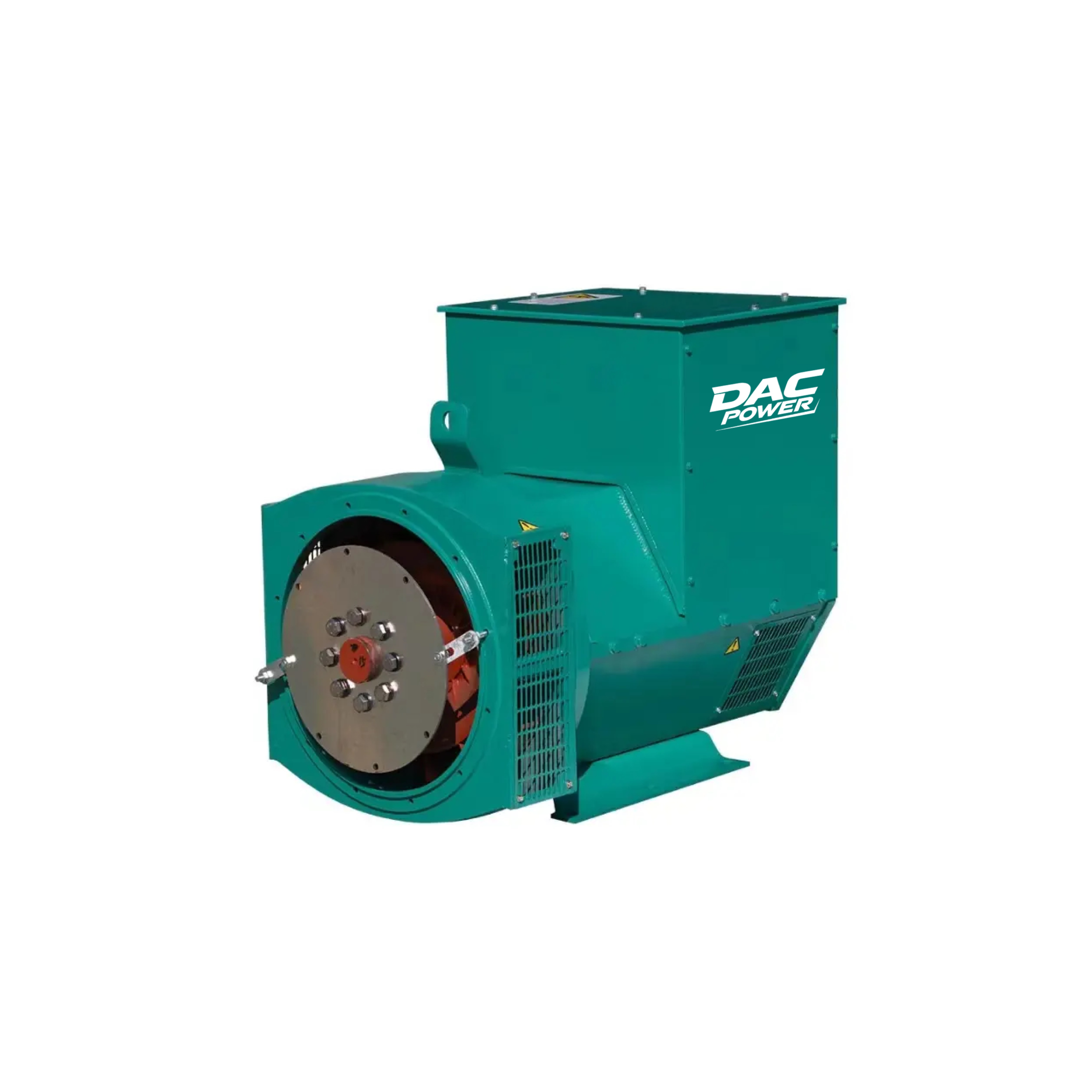

Experience unmatched reliability and performance with our brushless alternator, meticulously engineered using DAC technologies. This alternator is the perfect choice for various power generation applications, offering robust and efficient operation to meet your demanding requirements
| Specification | Value |
|---|---|
| Alternator Data | DAC POWER |
| AC Brushless | DAC Series |
| Phase No | Three |
| Protection | IP23 |
| Bearing | 1 |
| Power Factor | 0.8 |
| Frequency Hertz | 50 |
| Coupling | Flexible Disc |
| Exciter type | Self-excited |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Winding Connection | Y type , Star Series |
| winding Pitch | 2/3 |
| Insulation Grade | H |
| Altitude | 1000 |
| 50HZ - AC Generators | STANDBY 27°C | CONTINUOUNS 40°C | File Download | ||
|---|---|---|---|---|---|
| Brushless DAC Series | KVA | KW | KVA | KW | |
| DAC164A | 9 | 7 | 8 | 6.5 | - |
| DAC164B | 12 | 10 | 11 | 8.8 | - |
| DAC164C | 15 | 12 | 13 | 10.8 | - |
| DAC164D | 18 | 14 | 16 | 12.8 | - |
| DAC184ES | 22 | 18 | 20 | 16 | - |
| DAC184E | 25 | 20 | 22 | 18 | - |
| DAC184FS | 28 | 22 | 25 | 20 | - |
| DAC184F | 30 | 24 | 28 | 22 | - |
| DAC184G | 35 | 28 | 31 | 25 | - |
| DAC184H | 42 | 33 | 28 | 30 | - |
| DAC184JS | 45 | 36 | 40 | 32 | - |
| DAC184J | 52 | 38 | 42 | 34 | - |
| DAC224C | 52 | 38 | 42 | 34 | - |
| DAC224D | 55 | 44 | 50 | 40 | - |
| DAC224ES | 60 | 48 | 54 | 43 | - |
| DAC224E | 66 | 53 | 60 | 48 | - |
| DAC224FS | 75 | 60 | 68 | 54 | - |
| DAC224F | 80 | 64 | 72 | 58 | - |
| DAC224G | 94 | 75 | 85 | 68 | - |
| DAC274CS | 103 | 83 | 94 | 75 | - |
| DAC224C | 110 | 88 | 100 | 80 | - |
| DAC224DS | 125 | 100 | 113 | 90 | - |
| DAC274D | 132 | 105 | 120 | 96 | - |
| DAC274ES | 138 | 110 | 125 | 100 | - |
| DAC274E | 154 | 123 | 140 | 112 | - |
| DAC274FS | 165 | 132 | 150 | 120 | - |
| DAC274F | 175 | 140 | 160 | 128 | - |
| DAC274G | 200 | 160 | 182 | 145 | - |
| DAC274H | 220 | 176 | 200 | 160 | - |
| DAC274J | 252 | 202 | 230 | 184 | - |
| DAC274K | 275 | 220 | 250 | 200 | - |
| DAC444C | 275 | 220 | 250 | 200 | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
