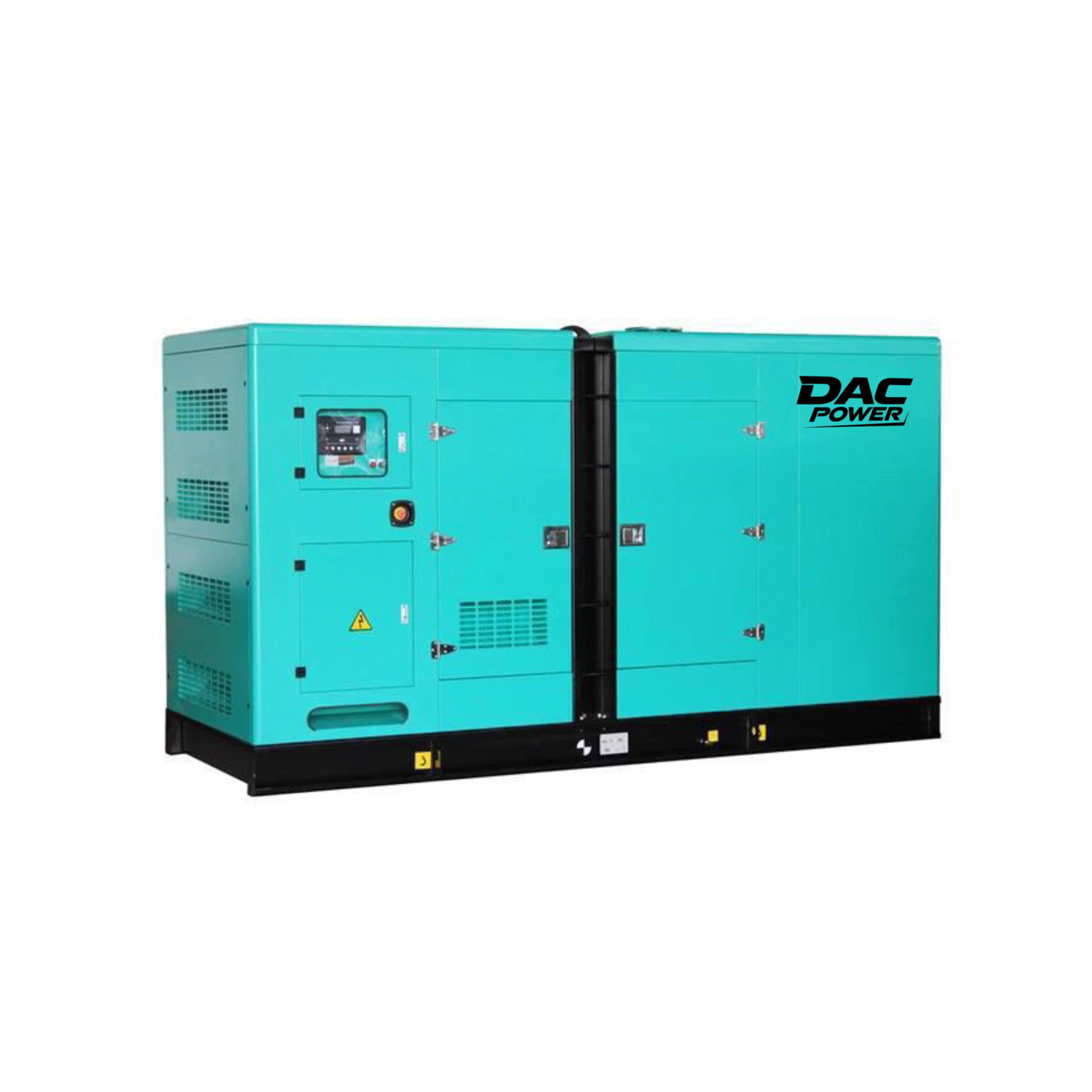

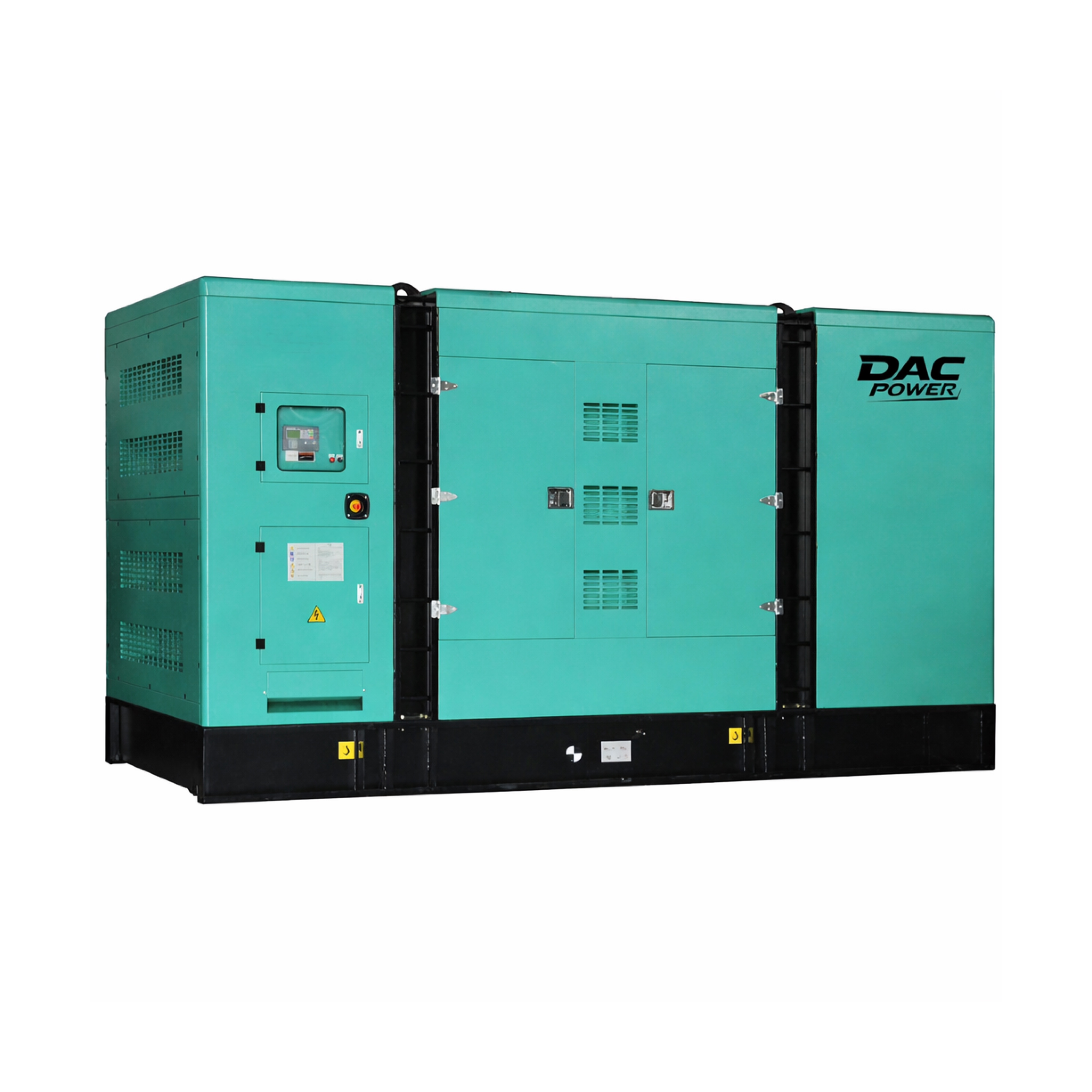

The CCEC Series generator sets are powered by Cummins engines, delivering unparalleled power and performance. These engines have a track record of delivering consistent, smooth operating performance, ensuring uninterrupted power in critical situations. Capable of handling high power demands, the CCEC Series is suitable for a wide range of applications from construction sites and data centers to hospitals and manufacturing facilities. One of the outstanding features of the CCEC series is its compact structure, which makes it easy to install and transport. These generator sets are designed to take up minimal space while delivering maximum power output.
| Specification | Value |
|---|---|
| Engine Brand | CUMMINS |
| Power Coverage | 250-2750KVA |
| Engine Type | EFC , ECM / ECU ............. |
| Speed | 1500rpm |
| Cooling System | Water-cooled |
| Insulation Protection | IP23 |
| Insulation Grade | Class H |
| Alternator | Satoshi / Stamford / Mecc Alte / Leroy Somer / |
| Controller | Deepsea / SmartGen / ComAp/ Other..... |
| ATS System | Function |
| Genset Version | Open type / Silent type / Containerized type... |
| Genset Brand | DAC POWER |
| SERIES 50HZ 1500R.P.M | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset Version | Genset Performance | Engine Performance | Dimension(L*W*H) | Data Sheets | ||||||||
| Open Type Genset Model | Silent Type Genset Model | Standby Power | Prime Power | Engine Model | Net Power (kw) | Cyl.-Bore*Stroke (mm) | Displacement (L) | Open type (mm) | Silent Type (mm) | - | ||
| kVA | kW | kVA | kW | |||||||||
| STG-C275 | STG-C275S | 275 | 220 | 250 | 200 | MTAA11-G2 | 224 | 6L-125*145 | 10.8 | 2800*1100*1670 | 4000*1400*2030 | - |
| STG-C275 | STG-C275S | 275 | 220 | 250 | 200 | NT855-GA | 231 | 6L-140*152 | 14 | 3030*1120*1900 | 4200*1400*2130 | - |
| STG-C275 | STG-C275S | 275 | 220 | 250 | 200 | NTA855-G1 | 240 | 6L-140*152 | 14 | 3130*1120*1900 | 4000*1400*2130 | - |
| STG-C300 | STG-C300S | 300 | 240 | 275 | 220 | NTA855 | 261 | 6L-140*152 | 14 | 3130*1120*1520 | 4200*1400*2130 | - |
| STG-C350 | STG-C305S | 350 | 280 | 312,5 | 250 | MTAA11-G3 | 282 | 6L-125*147 | 10.8 | 3130*1120*1900 | 4200*1400*2130 | - |
| STG-C350 | STG-C350S | 350 | 280 | 312.5 | 250 | NTA855-G1B | 284 | 6L-140*152 | 14 | 3130*1120*1900 | 4200*1400*2130 | - |
| STG-C385 | STG-C385S | 385 | 308 | 350 | 280 | NTA855-G2A | 312 | 6L-140*152 | 14 | 3220*1120*1900 | 4200*1400*2130 | - |
| STG-C385 | STG-C385S | 385 | 308 | 350 | 280 | NTA855-G4 | 317 | 6L-140*152 | 14 | 3220*1120*1900 | 4200*1400*2130 | - |
| STG-C413 | STG-C413S | 413 | 330 | 375 | 300 | NTAA855-G7 | 343 | 6L-140*152 | 14 | 3290*1220*1900 | 4500*1400*2130 | - |
| STG-C440 | STG-C440S | 440 | 352 | 400 | 320 | QSNT-G3 | 358 | 6L-140*152 | 14 | 3250*1220*1900 | 4500*1400*2130 | - |
| STG-C450 | STG-C450S | 450 | 360 | 400 | 320 | NTAA855-7A | 369 | 6L-140*152 | 14 | 3250*1220*1900 | 4500*1400*2130 | - |
| STG-C500 | STG-C500S | 500 | 400 | 450 | 360 | KTA19-G3 | 403 | 6L-159*159 | 18.9 | 3370*1400*2170 | 4800*1700*220 | - |
| STG-C550 | STG-C550S | 550 | 440 | 500 | 400 | KTA19-G3A | 448 | 6L-159*159 | 18.9 | 3370*1400*2170 | 4800*1700*2200 | - |
| STG-C580 | STG-C580S | 580 | 464 | 525 | 460 | KTAA19-G5 | 470 | 6L-159*159 | 18.9 | 3470*1520*2200 | 4600*1900*2230 | - |
| STG-C600 | STG-C600S | 600 | 480 | 550 | 440 | KTA19-G8 | 522 | 6L-159*159 | 18.9 | 3440*1400*2170 | 4600*1950*2130 | - |
| STG-C630 | STG-C630 | 630 | 504 | 575 | 460 | KTA19-G8 | 522 | 6L-159*159 | 18.9 | 3540*1400*2170 | 4600*1950*2450 | - |
| STG-C630 | STG-C630 | 630 | 504 | 575 | 460 | KTAA19-G6 | 570STB | 6L-159*159 | 18.9 | 3600*1450*2170 | 4800*1950*2500 | - |
| STG-C690 | STG-C690S | 690 | 552 | 625 | 500 | KTAA19-G6A | 610STB | 6L-159*159 | 18.9 | 3600*1600*2200 | 4800*2000*2450 | - |
| STG-C700 | STG-C700S | 700 | 560 | 625 | 500 | KT38-G | - | 12V-159*159 | 37.8 | 4 | 5800*2250*2550 | - |
| STG-C715 | STG-C715S | 715 | 572 | 650 | 520 | QSK19-G4 | 574 | 6L-159*159 | 19 | 3600*1600*2200 | 4800*2000*2450 | - |
| STG-C750 | STG-C750S | 750 | 600 | 681 | 545 | QSK19-G19 | - | 6L-159*159 | 19 | - | - | - |
| STG-C750 | STG-C750S | 750 | 600 | 688 | 550 | QSK19-G11 | - | 6L-159*159 | 19 | - | - | - |
| STG-C800 | STG-C800S | 800 | 640 | 725 | 580 | KT30-GA | 647 | 12V-159*159 | 37.8 | 4400*2000*2470 | 5800*2250*2550 | - |
| STG-C825 | STG-C825S | 825 | 660 | 750 | 600 | KTA38-G2 | 664 | 12V-159*159 | 37.8 | 4400*2000*1970 | 5800*2250*2550 | - |
| STG-C880 | STG-C880S | 880 | 704 | 800 | 640 | KTA38-G2B | 711 | 12V-159*159 | 37.8 | 4500*2000*2470 | 5800*2250*2550 | - |
| STG-C1000 | STG-C1000S | 1000 | 800 | 900 | 720 | KTA38-G2A | 813 | 12V-159*159 | 37.8 | 45000*2000*2470 | 5800*2250*2550 | - |
| STG-C1100 | STG-C1100S | 1100 | 880 | 1000 | 800 | KTA38-G5 | 881 | 12V-159*159 | 37.8 | 4600*2100*2500 | 5800*2250*2550 | - |
| STG-C1250 | STG-C1250S | 1250 | 1000 | 1125 | 900 | KTA38-G9 | 1089 | 12V-159*159 | 37.8 | 4400*2100*2500 | 6058*2250*2550 | - |
| STG-C1375 | STG-C1375L | 1375 | 1100 | 1250 | 1000 | KTA350-G3 | 1097 | 16V-159*159 | 50.3 | 5000*2200*2550 | Container 40HQ | - |
| STG-C1500 | STG-C1500L | 1500 | 1200 | 1375 | 1100 | KTA50-G8 | 1200 | 16V-159*159 | 50.3 | 5000*2200*2550 | Container 40HQ | - |
| STG-C1650 | STG-C1650L | 1650 | 1320 | 1500 | 1200 | KTA50-GS8 | 1500 | 16V-159*159 | 50.3 | 5000*2200*2550 | Container 40HQ | - |
| STG-C1650 | STG-C1650L | 1650 | 1320 | 1500 | 1200 | KTA50-G8E | - | 16V-159*159 | 50.3 | 5000*2200*2550 | Container 40HQ | - |
| STG-C1875 | STG-C1875L | 1875 | 1500 | 1675 | 1340 | KTA50-G15X | - | 16V | - | - | - | - |
| STG-C2000 | STG-C2000L | 2000 | 1600 | 1875 | 1500 | - | - | 16V | - | - | - | - |
| STG-C2250 | STG-C2250L | 2250 | - | 2000 | - | - | - | 16V | - | - | - | - |
| STG-C2500 | STG-C2500L | 2500 | - | 22550 | - | - | - | 16V | - | - | Container 40HQX | - |
| STG-C2750 | STG-2750L | 2750 | 2200 | 2500 | 2000 | QSK60-G23 | 2157 | 16V-159*190 | 60.2 | 6900*2770*3305 | Container 40HQX | - |
